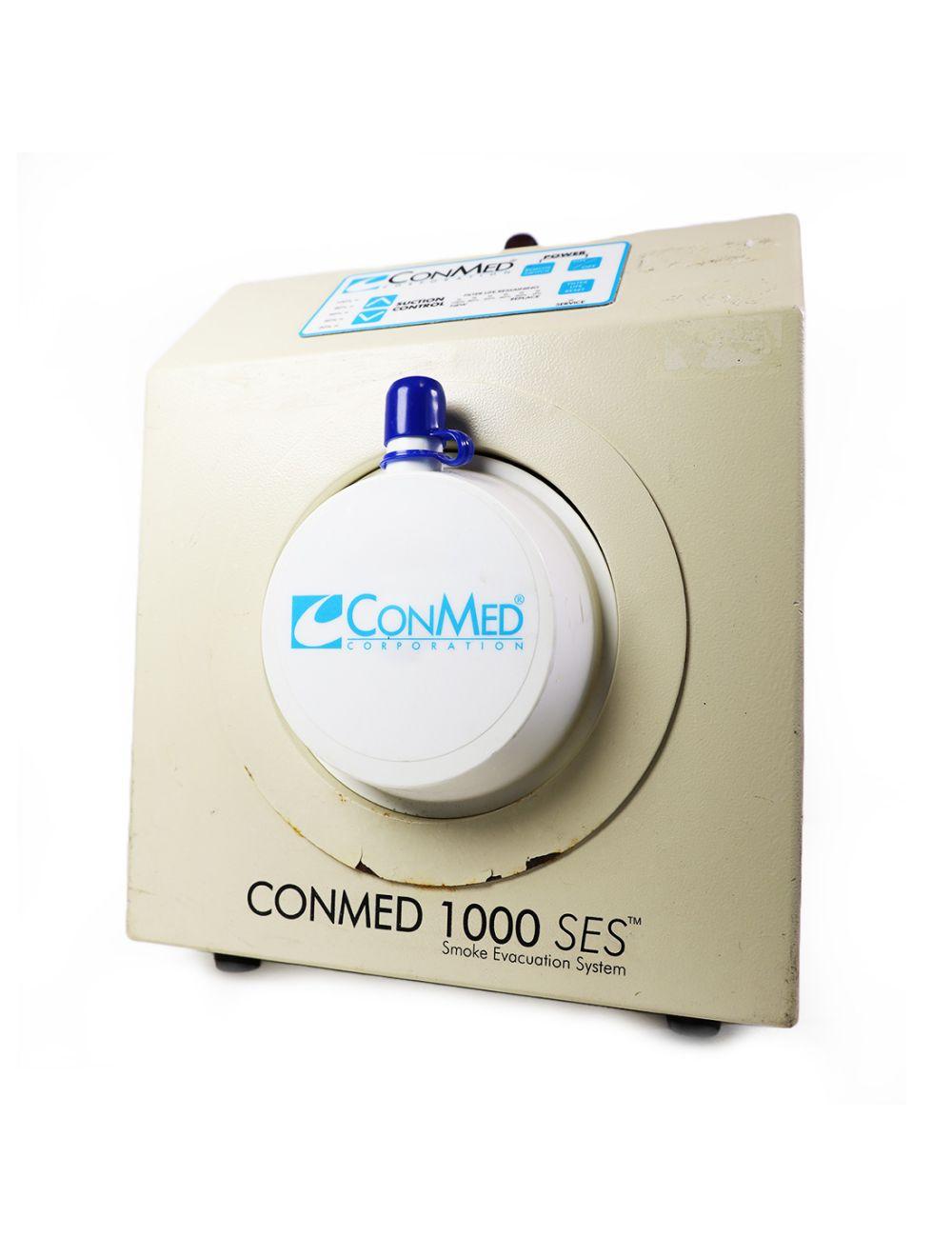

ConMed 1000 SES 60-6850-001 Surgical Smoke Plume Evacuator Suction Vacuum System

Pre-Owned, Good Working Condition, Signs of Use - Discolored Exterior, Paint Cracks alot Front Circle Molding

Overview

The Conmed 1000 SES has been designed with a high suction, high flow rate centrifugal action pump.
The ultra-quiet motor is used to draw the surgical smoke from the surgical site, through the vacuum tubing and into the CONMED 1000SESTM filter where the surgical smoke is processed by a series of filters.
A single disposable filter is used to simplify the installation and removal during filter changes.
The filter is completely enclosed to protect the healthcare personnel from potential contamination during filter changes. One CONMED 1000SESTM Filter contains four different filter stages to decontaminate the smoke plume.

  • The first stage filtration is a prefilter whose function is to trap and remove gross particulate and casual fluid.
  • The second stage filtration is a VLSI (Very Large Scale Integrated) grade ULPA (Ultra Low Penetration Air) filter whose high-tech patented design captures particulates and micro-organisms down to 0.012 µm at an efficiency of 99.99995%. Each VLSI grade ULPA filter is pretested and certified before use.
  • The third stage filtration uses the highest grade virgin coal grade activated carbon for the removal and adsorption of odors and toxic gases produced by cauterization of tissue. These harmful gases may constitute a health hazard to healthcare professionals who are subjected to prolonged exposure. The activated carbon used in the CONMED 1000SESTM preferentially removes toxic organic gases rather than water vapor and provides optimal odor removal.
  • The fourth stage filtration is an expanded foam and paper media used to trap activated carbon fines from migrating out of the filter. The first, second and fourth stages of the CONMED 1000SESTM Filter have been impregnated with a chemical agent. The chemical agent has been applied with a patented process that prevents the agent from being washed or blown off the filter media.

Conmed System 1000 SES Specifications

  • Dimensions
    • Height: 14.25 in ( 36.2 cm)
    • Width: 12.38 in (34 cm)
    • Length: 18.25 in (46.4 cm)
    • Weight: 25.5 lbs. (11.6 kg)
  • Flow Rate
    • 70 CFM (1982 LPM) with 1-1/4' (32mm) hose
    • 48 CFM (1359 LPM) with 7/8' (22mm) hose
  • Power
    • 15 AMPS @ 100V/120V
    • 8 AMPS @ 220/240V
  • Tubing Size
    • 7/8' (22mm), 1-1/4' (32mm), and 1/4' (6.4mm)
  • Motor Rating
    • 115 CFM (3257 LPM)
  • Static Suction
    • 97' (246cm) H2O
  • Filtration Rate
    • 0.012 µm
  • Filtration Efficiency
    • 99.99995%

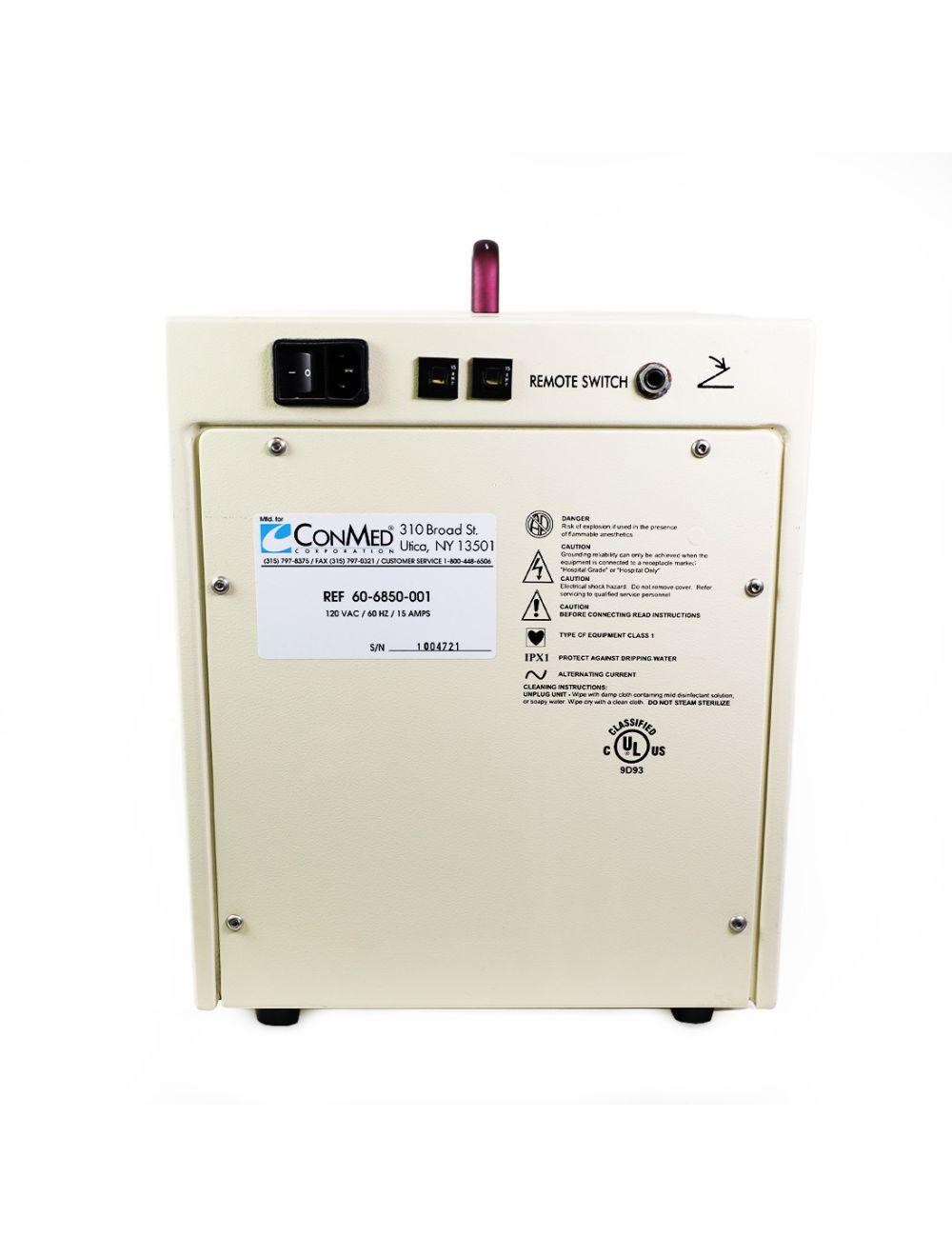

  • S/N: 1004721

Includes

  • ConMed 1000 SES System

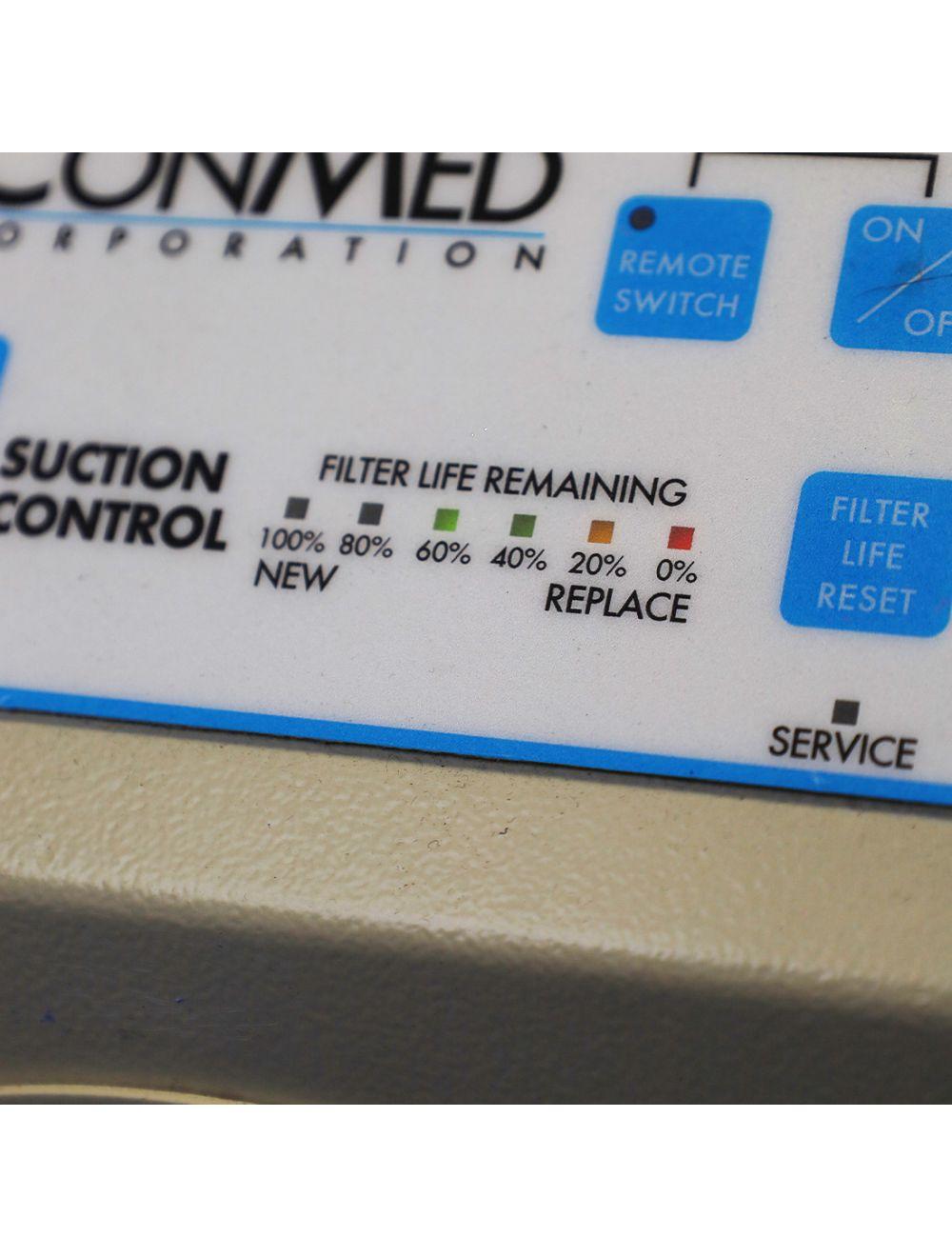

  • Filter at 60% Remaining
  • 110V - Power Cord

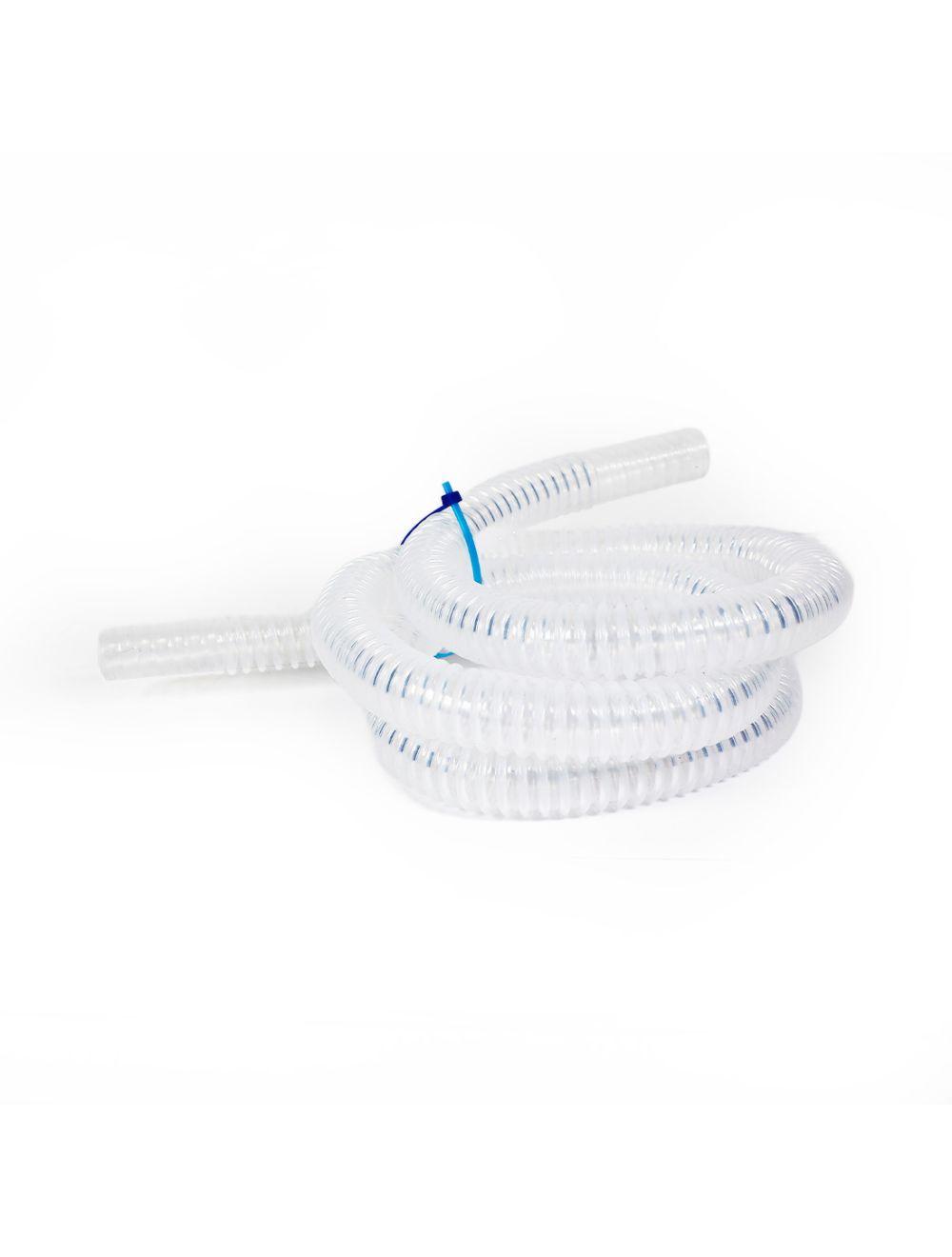

  • Hose
