Designed to remove surgical smoke from your OR

Theslim-silhouette smoke evacuator,Acu-Evac IEwith the car mountis for the physician who insists on the best quality equipment and durability. Superior suction Minimizes exposure to toxic smoke biohazards.

Ideal for procedures that generate a high volume of surgical smoke, such as electrosurgical, Erbium and CO2 laser procedures. It should be used for open procedures only.

For more information on the ACU-EVAC IE, Chat SOL Online and speak with an SOL representative today.

KeyFeatures

Electronic timer - 16 hours, PLUS low flow sensor/full filter alert

3-inch Clear Hyperbolic Horn with 1.3-inch I.D.For maximum collectionhold within 3 inches

Rotary variable airflow dial

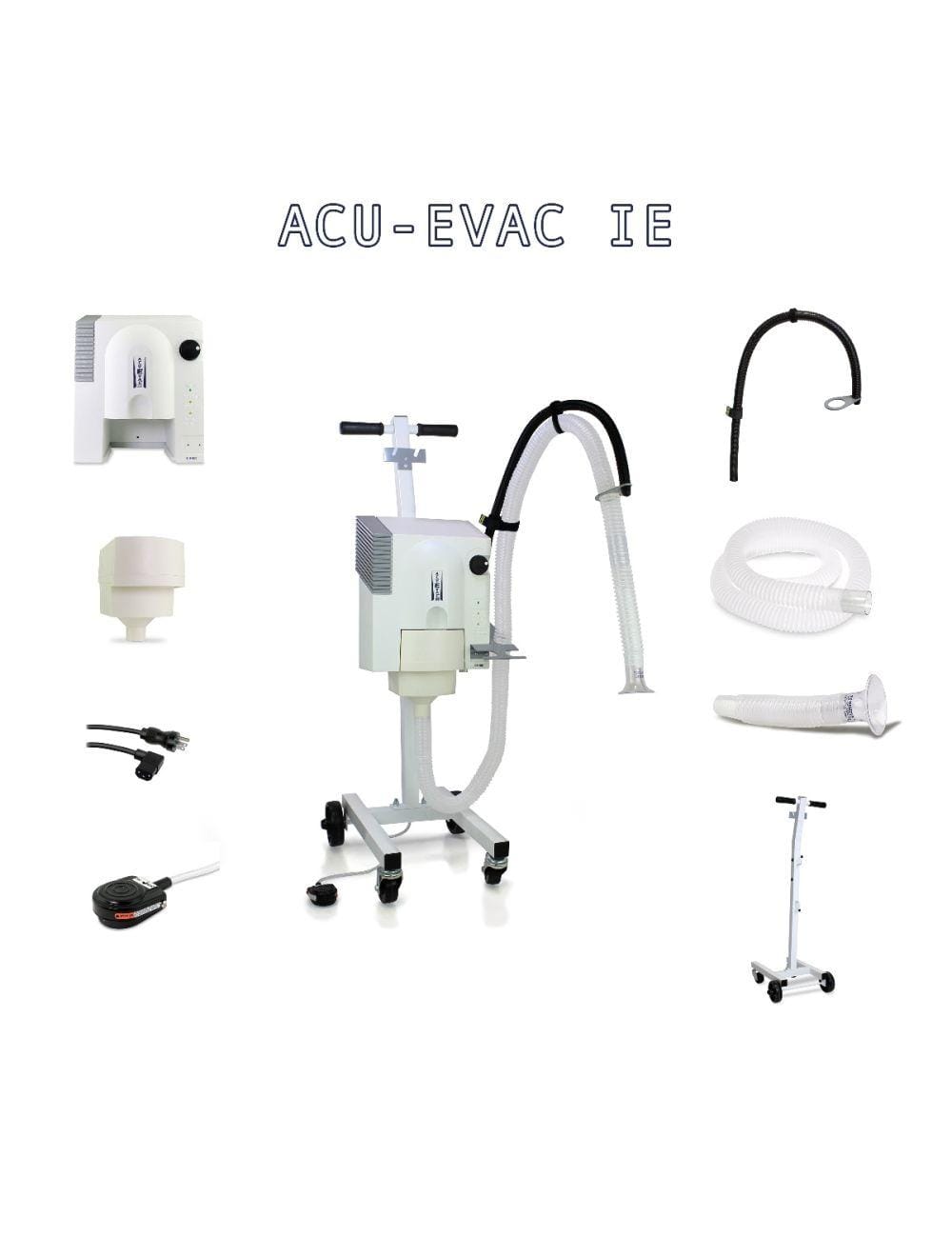

Includes

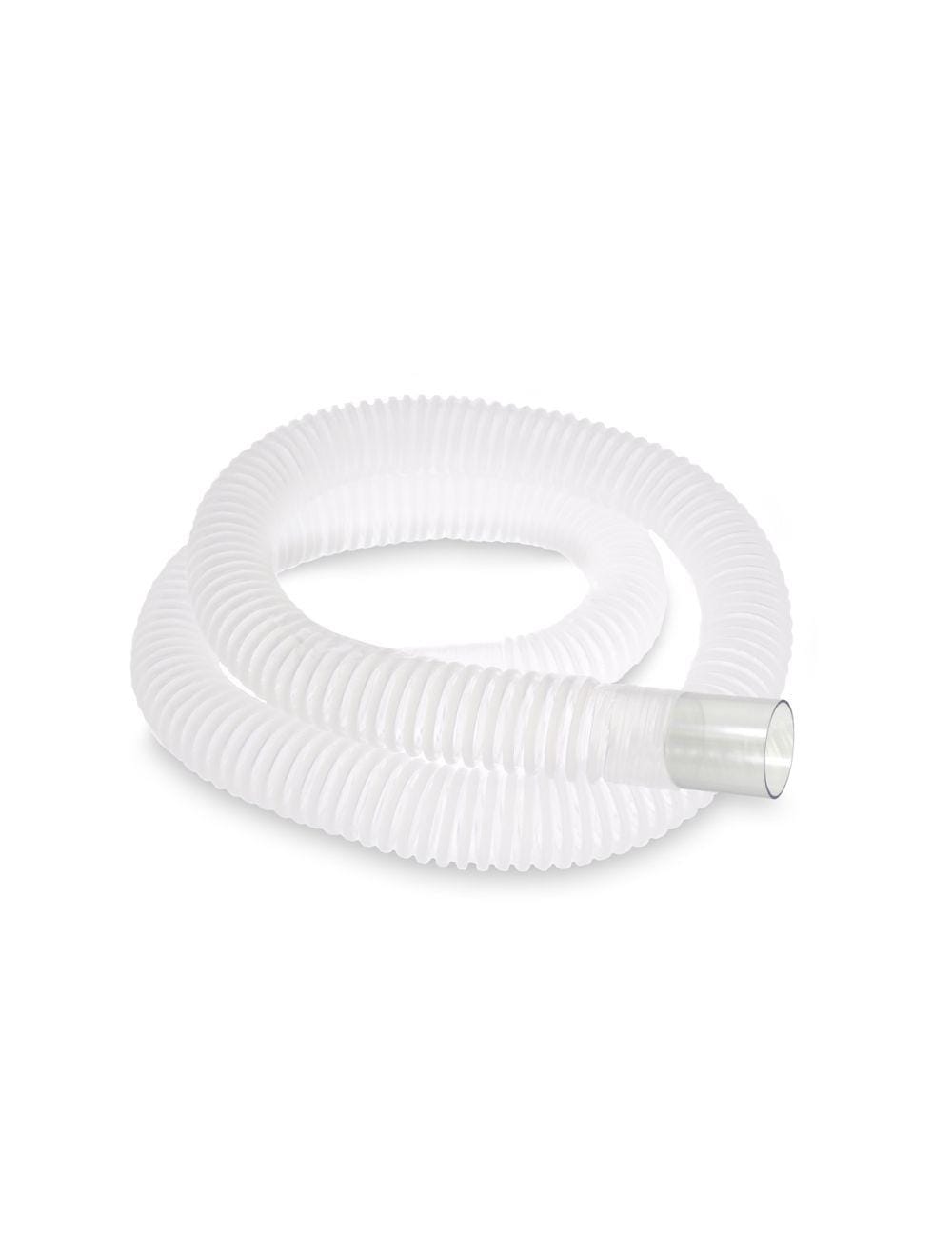

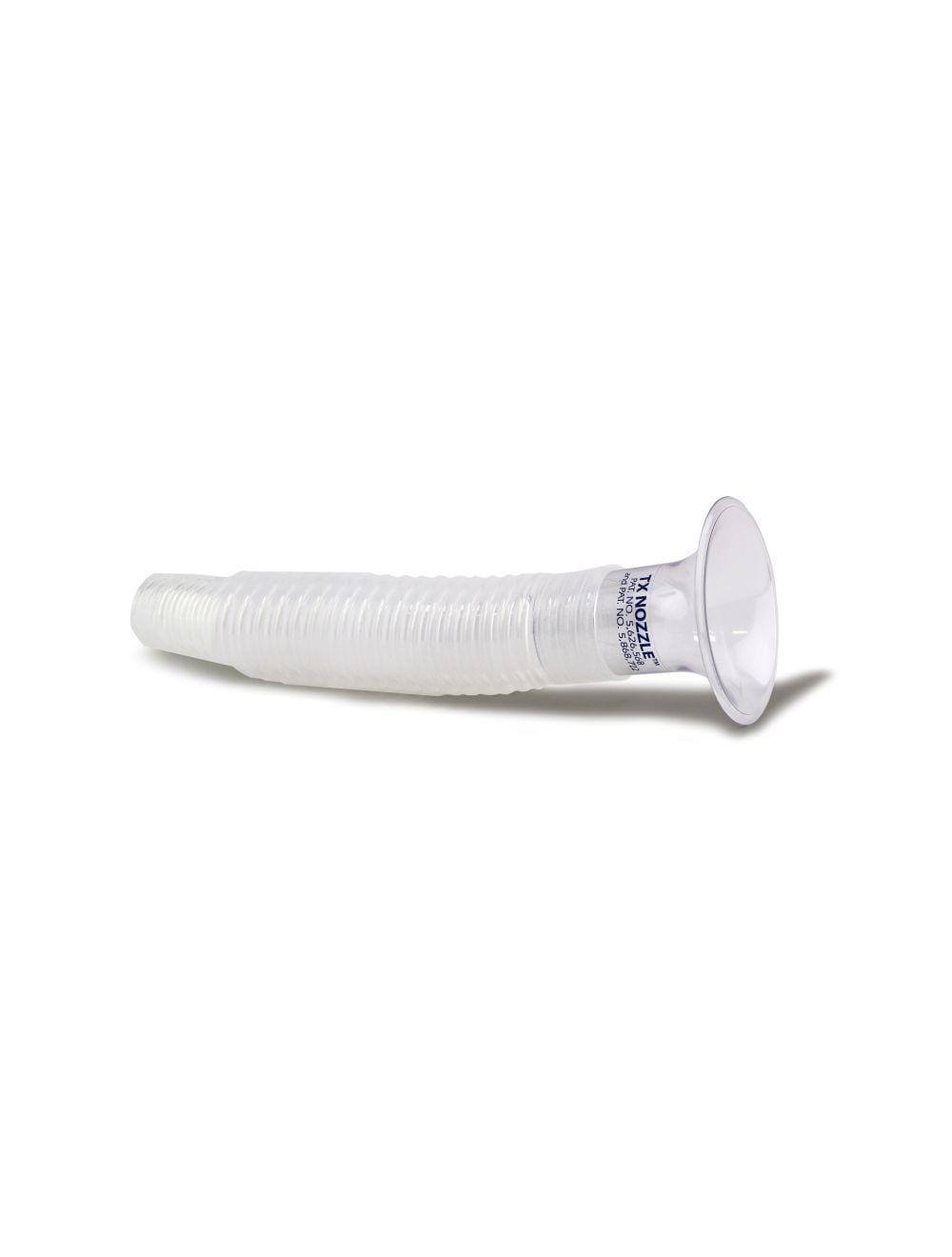

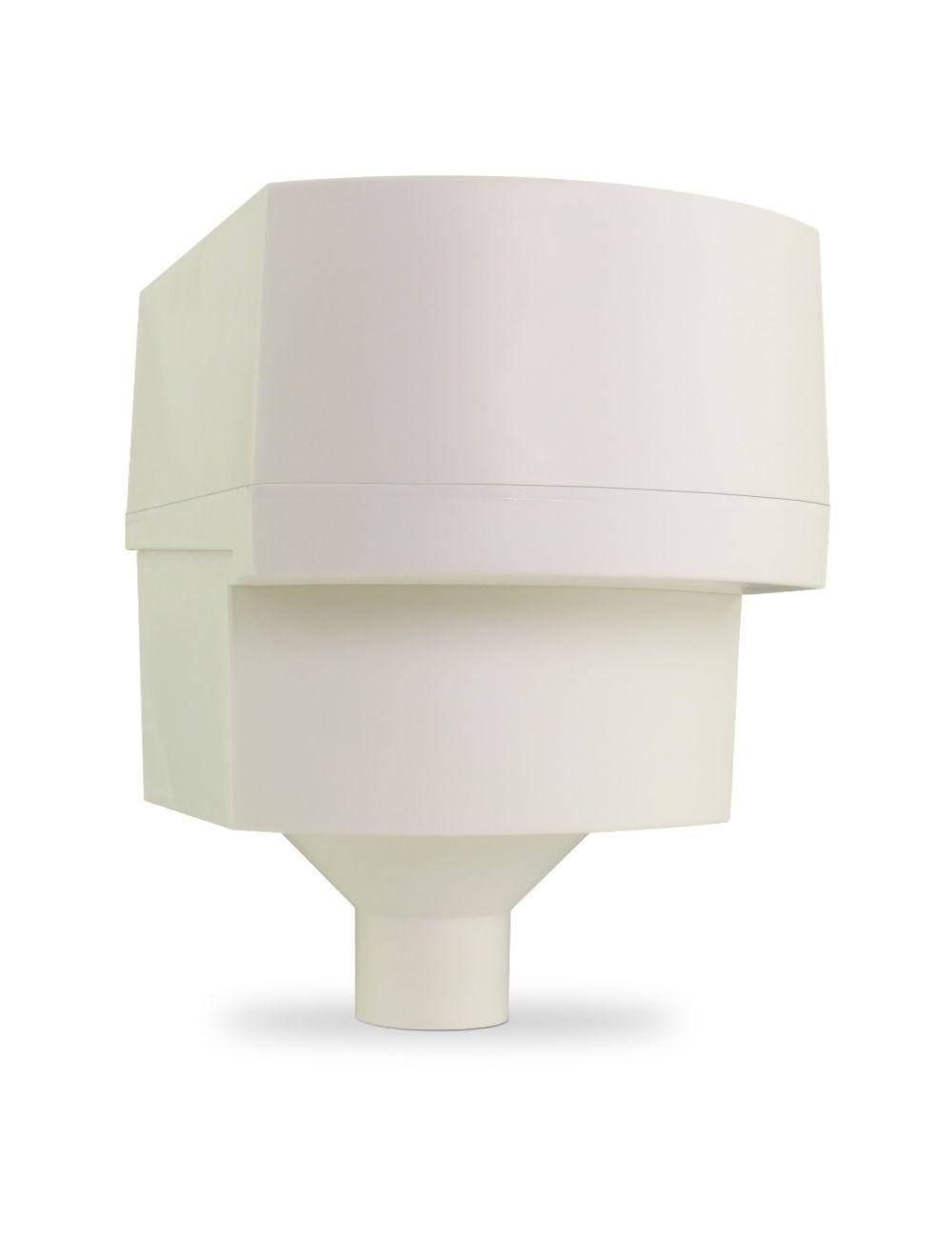

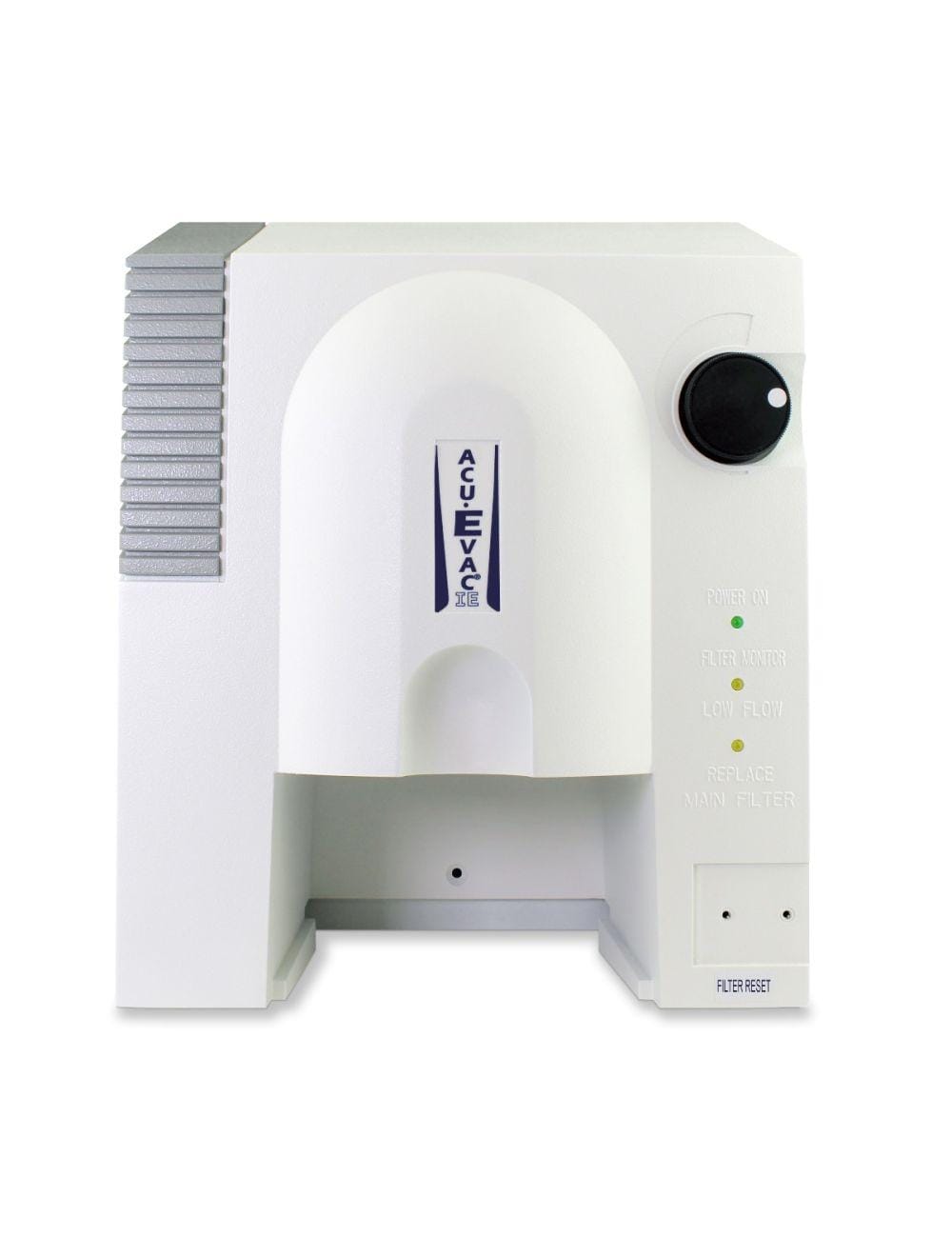

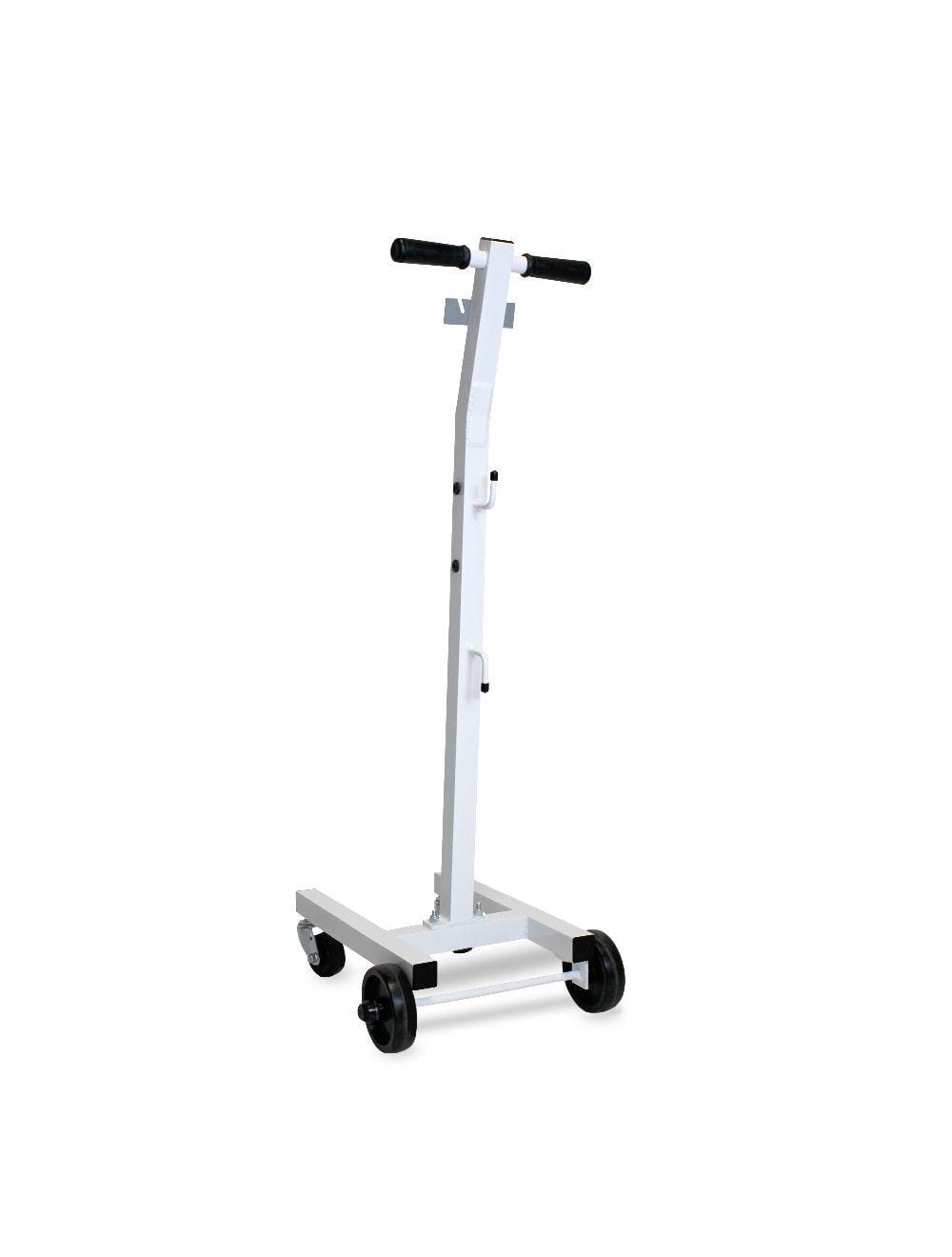

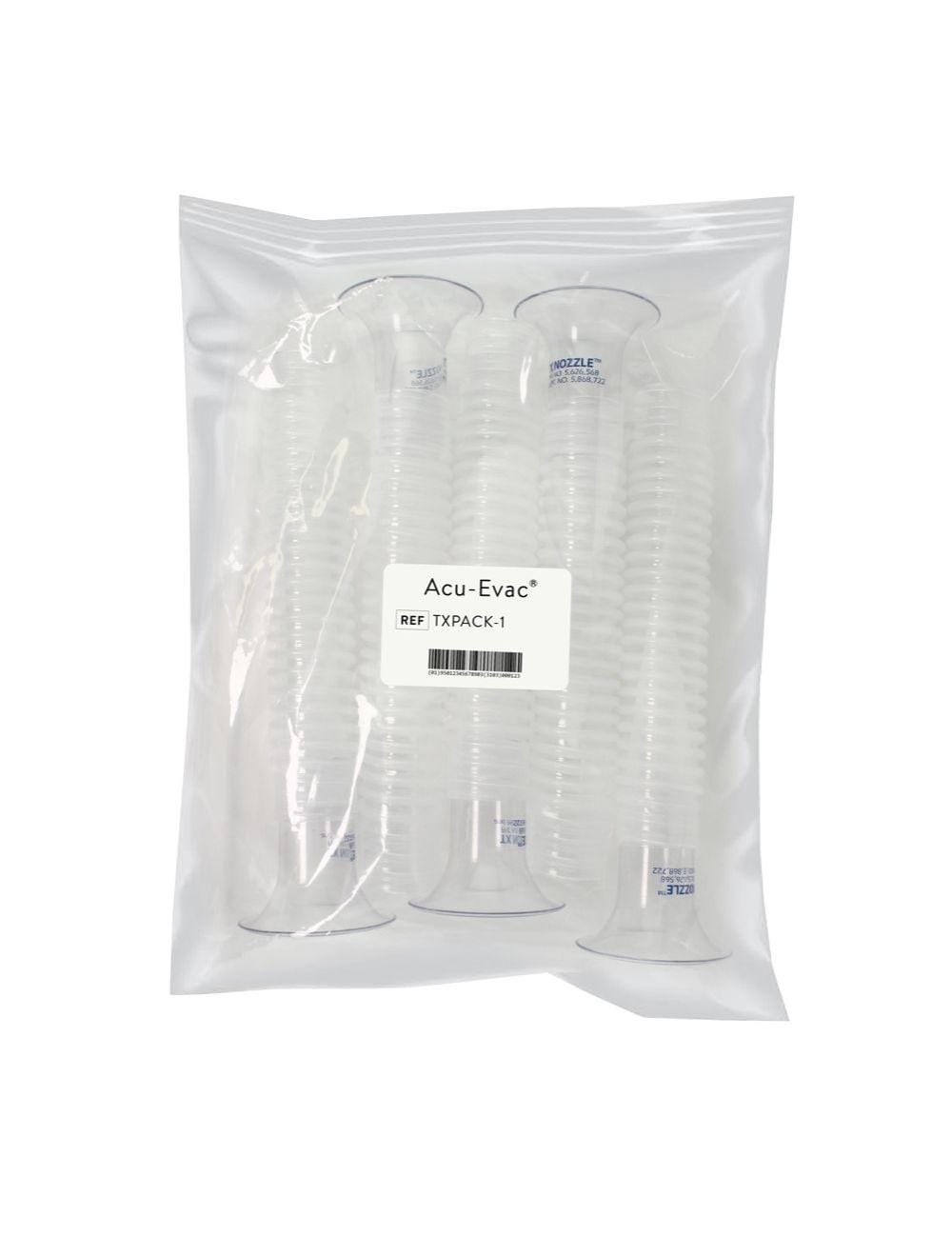

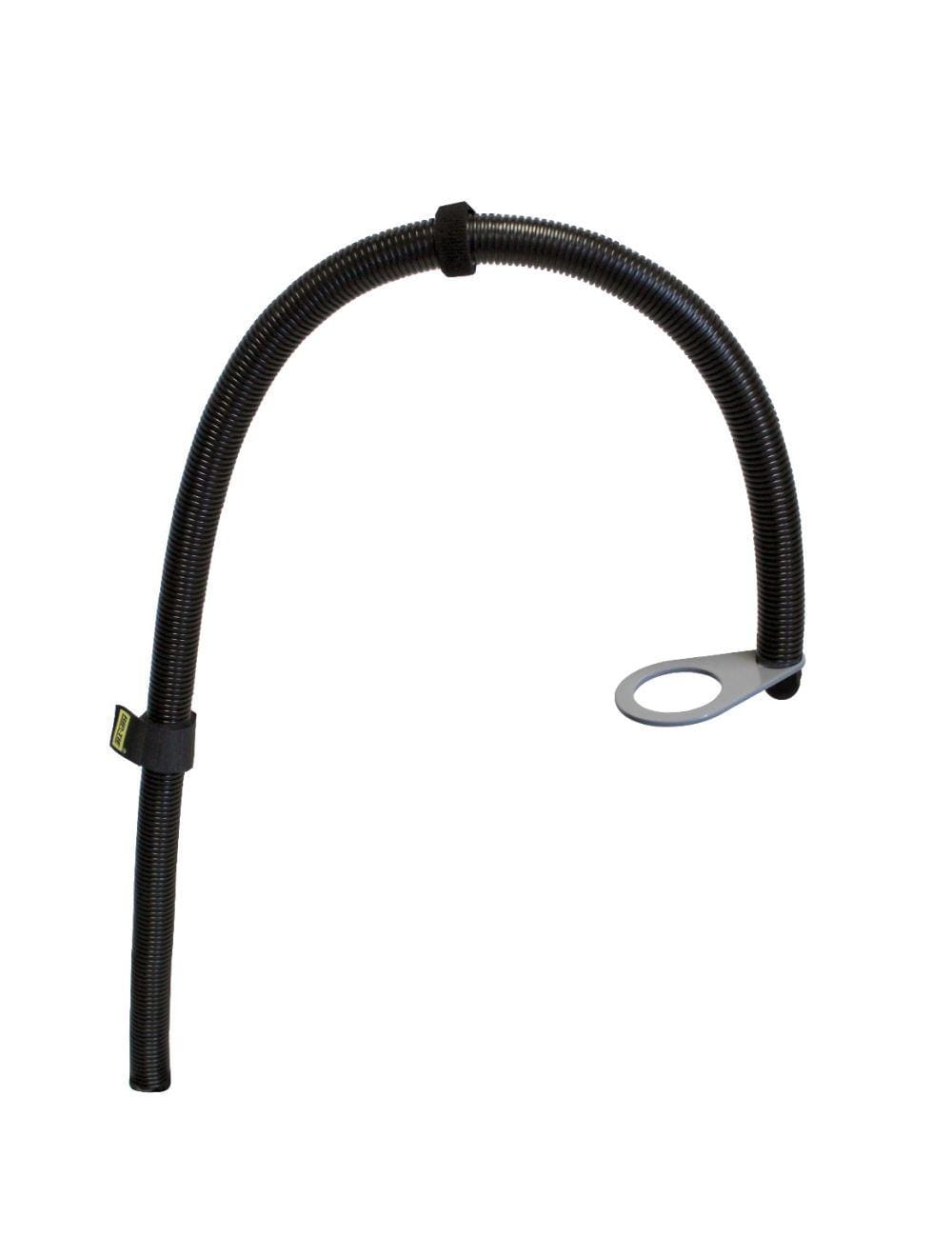

Acu-Evac IESmoke Evacuator Unit Main Filter (M-1) Cart Boom Arm Hose 5 TX Nozzles PneumaticFoot Pedal 2-Year warranty

Technical Data

Coefficient of Entry: 98%

Noise: <50db

Loss, Fraction of Velocity Head: 4%

Air Volume: 100+CFM

Air Velocity: >11,000 FPM

Main Filter: ULPA/Carbon filter, rated at 99.99997% at 0.01 micron and MPPS 0.12 micron

Filter Life Monitors: Electronic timer - 16 hours, PLUS low flow sensor/full filter alert

Motor: AC

Static Suction: 63inches H2O

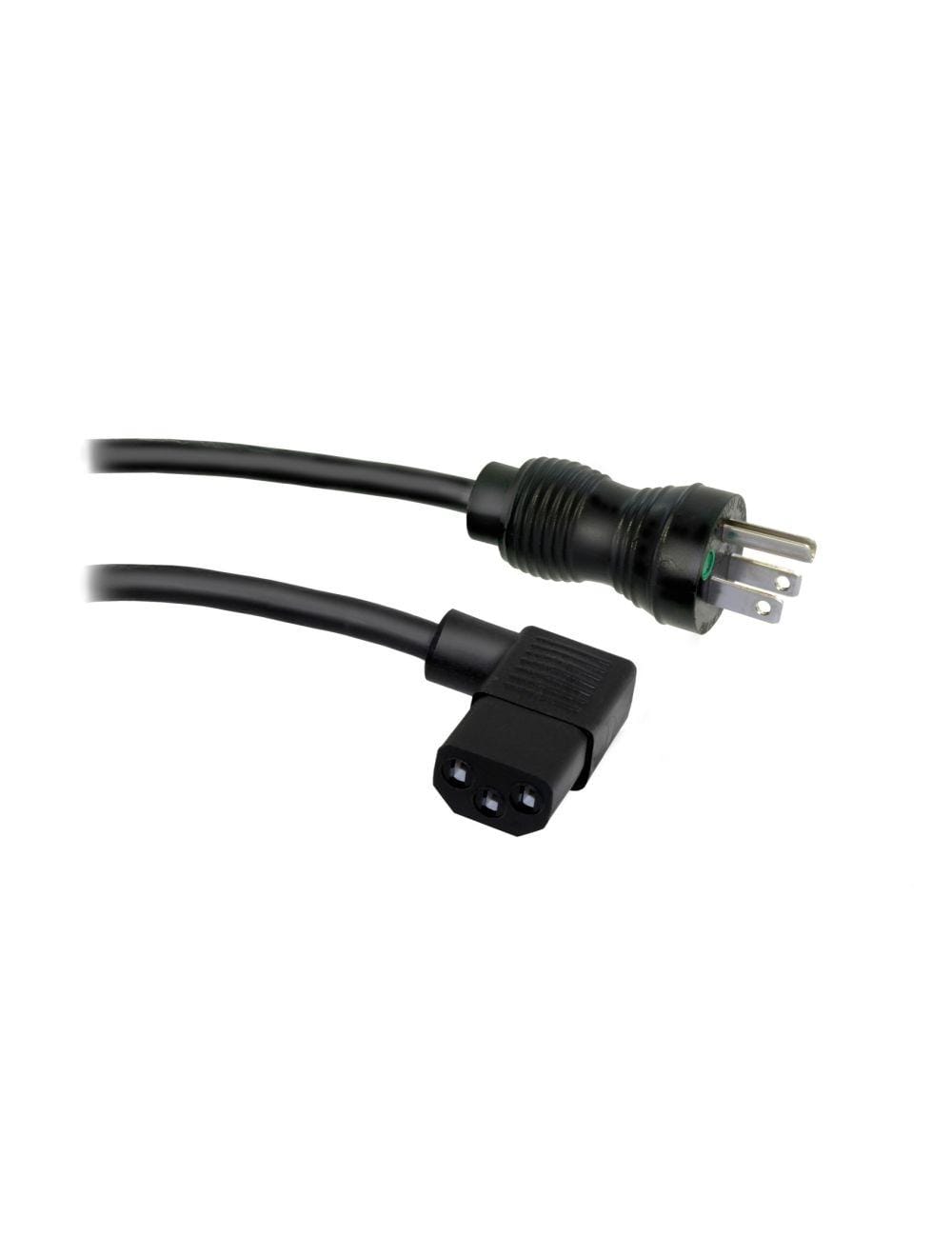

Cord/Plug: 8 ft. hospital grade

Classification: Type BF Class 1

Certification: UL2601-1, 2nd Edition, CAN/CSA C22.2 Standard 601.1-M90, CE Certified (220-240V Models)

Electrical Requirements: 110~120V, 50Hz/60Hz at 6.25Ampsor220~240V, 50Hz/60Hzat 4.0 Amps

Dimensions (LxWxH): 300mm x 360mm x 1130mm

Weight: 16.5 Lb

ACCESSORIES & SUPPLIES
