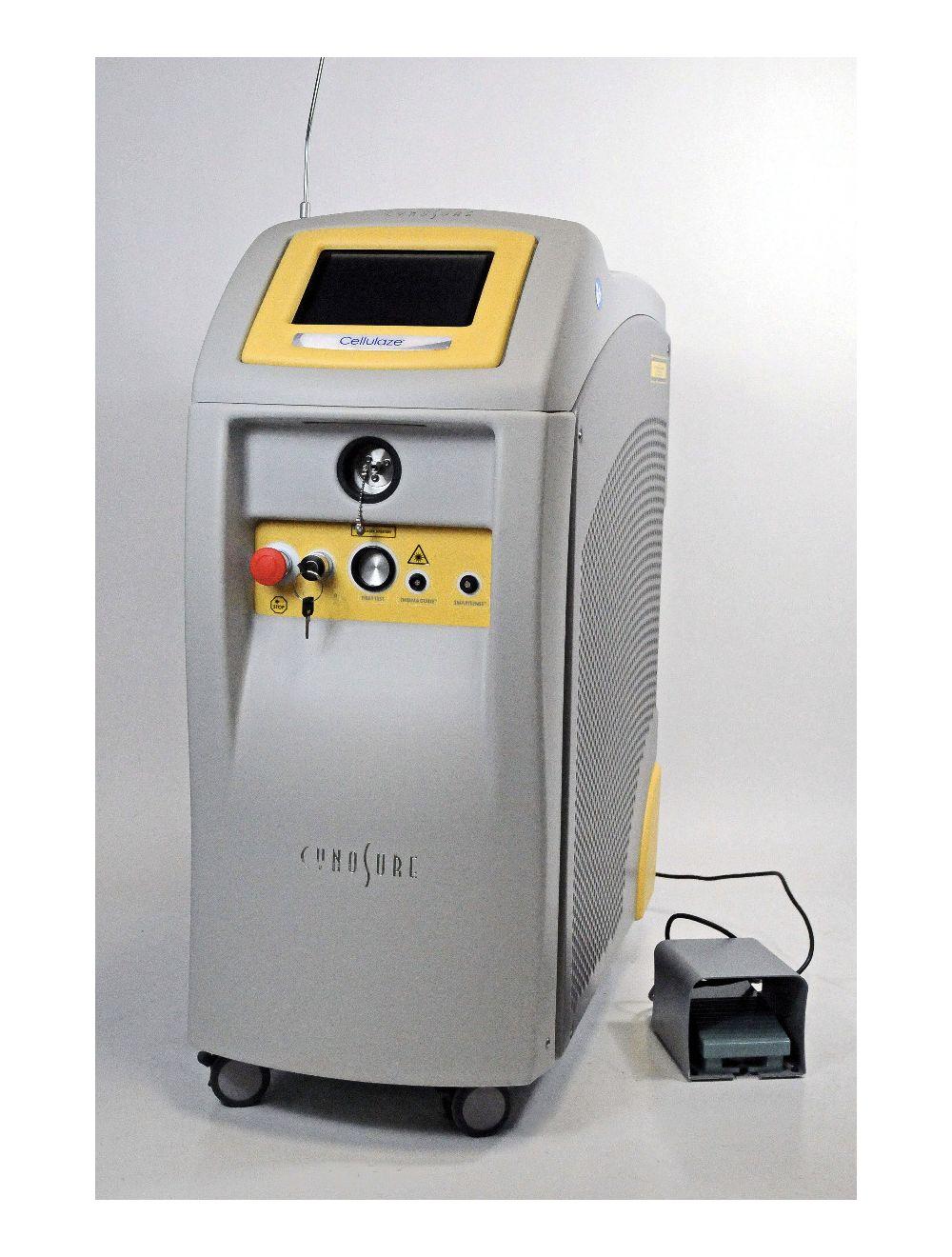

2011 Cynosure Triplex SmartLipo Nd: Yag Laser
** Setup for All 4 Fibers / Handpieces / ThermaGuides **
** Triplex with CelluLaze ** TriPlex with Precision **
3 Wavelengths: 1440 1320 1064
**************************

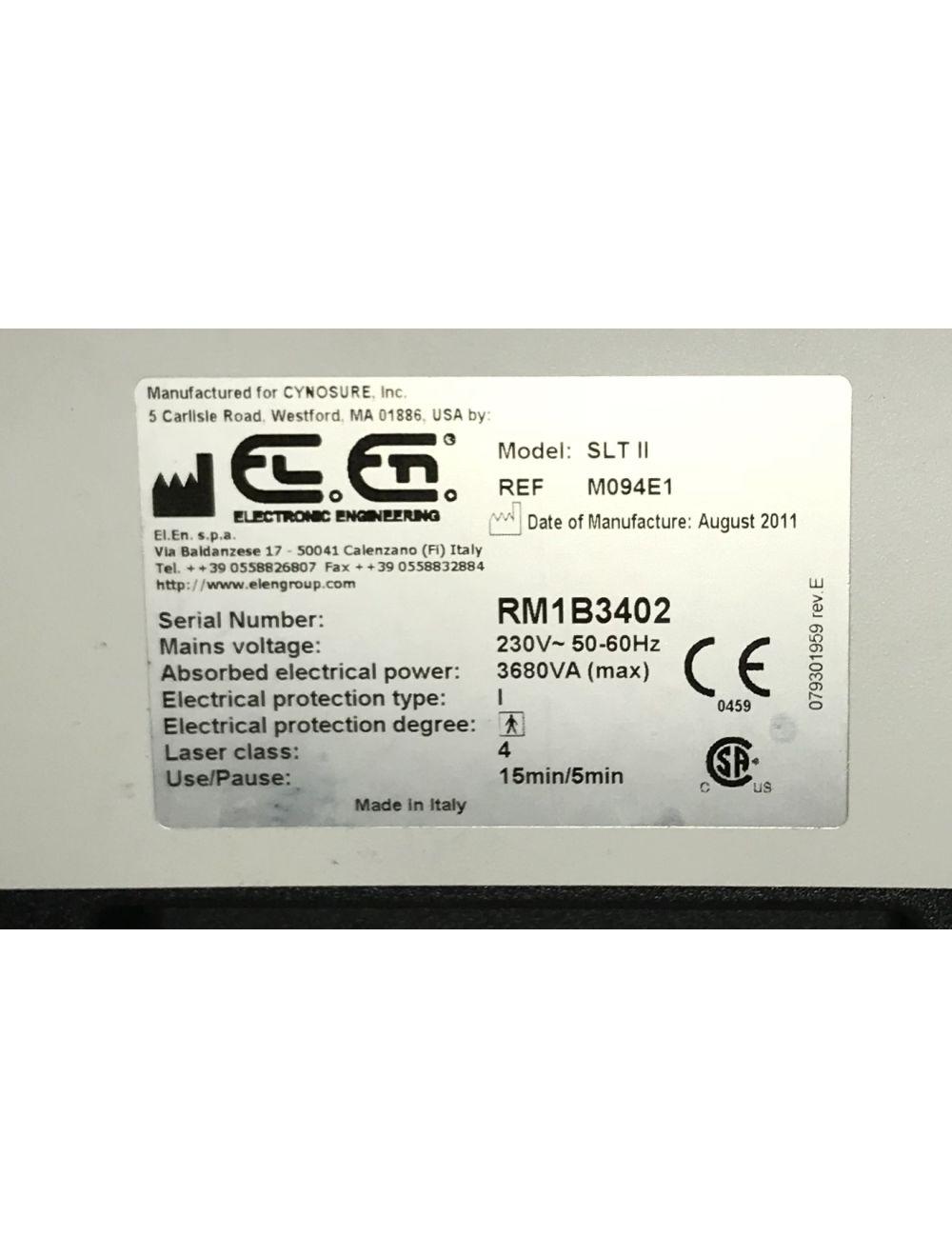

Model: SLT II
Ref: M094E1
Mfr Date: August 2011
Serial #: RM1B3402
**************************
40 Watt Max Total
1440 = 15
1320 = 24
1064 = 40
* Can Only Blend 2
* Can Only Blend WITH 1064
* 1064 + 1320
* 1064 + 1440
* 15w + 25w = 40 watt
**************************

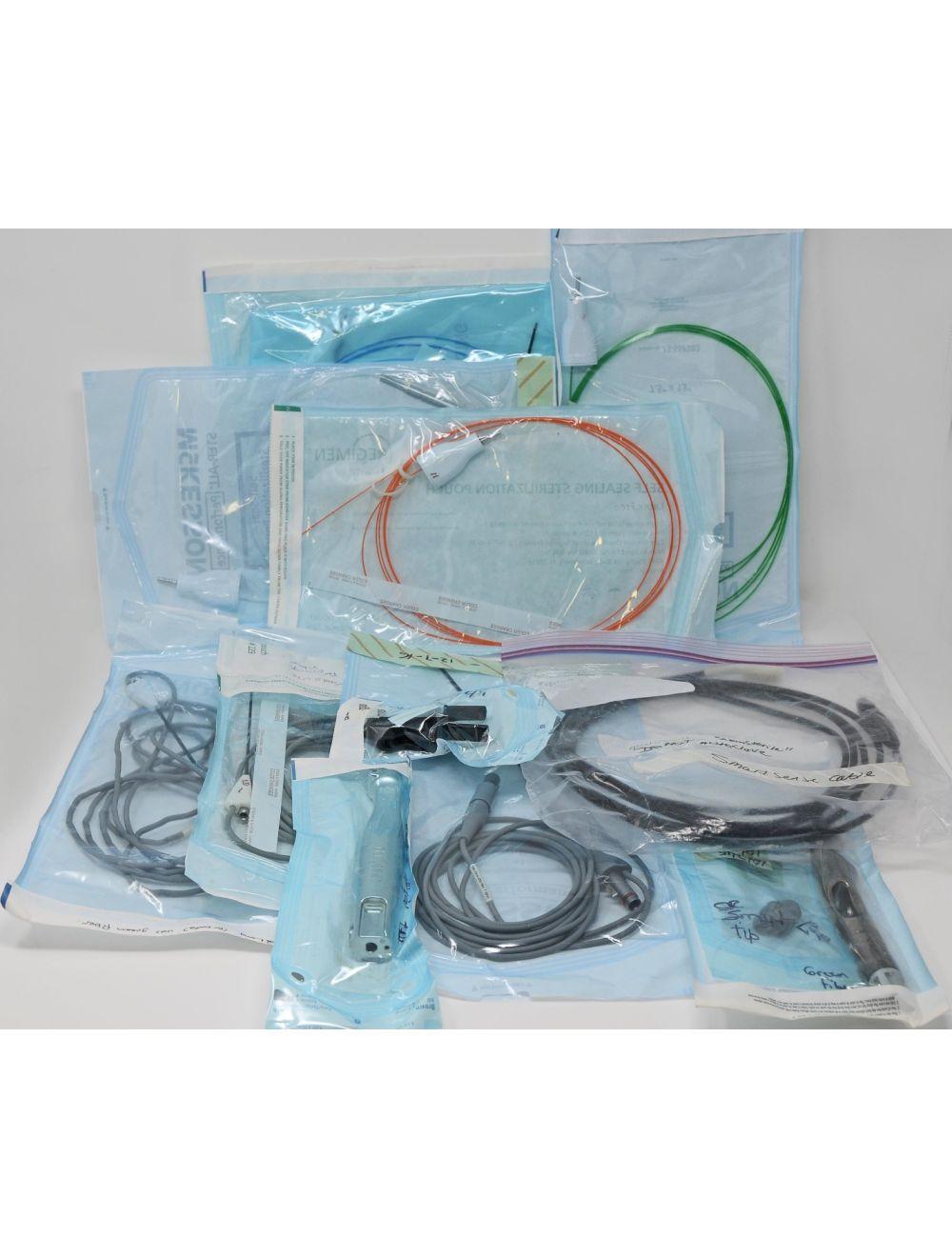

Includes:
- System

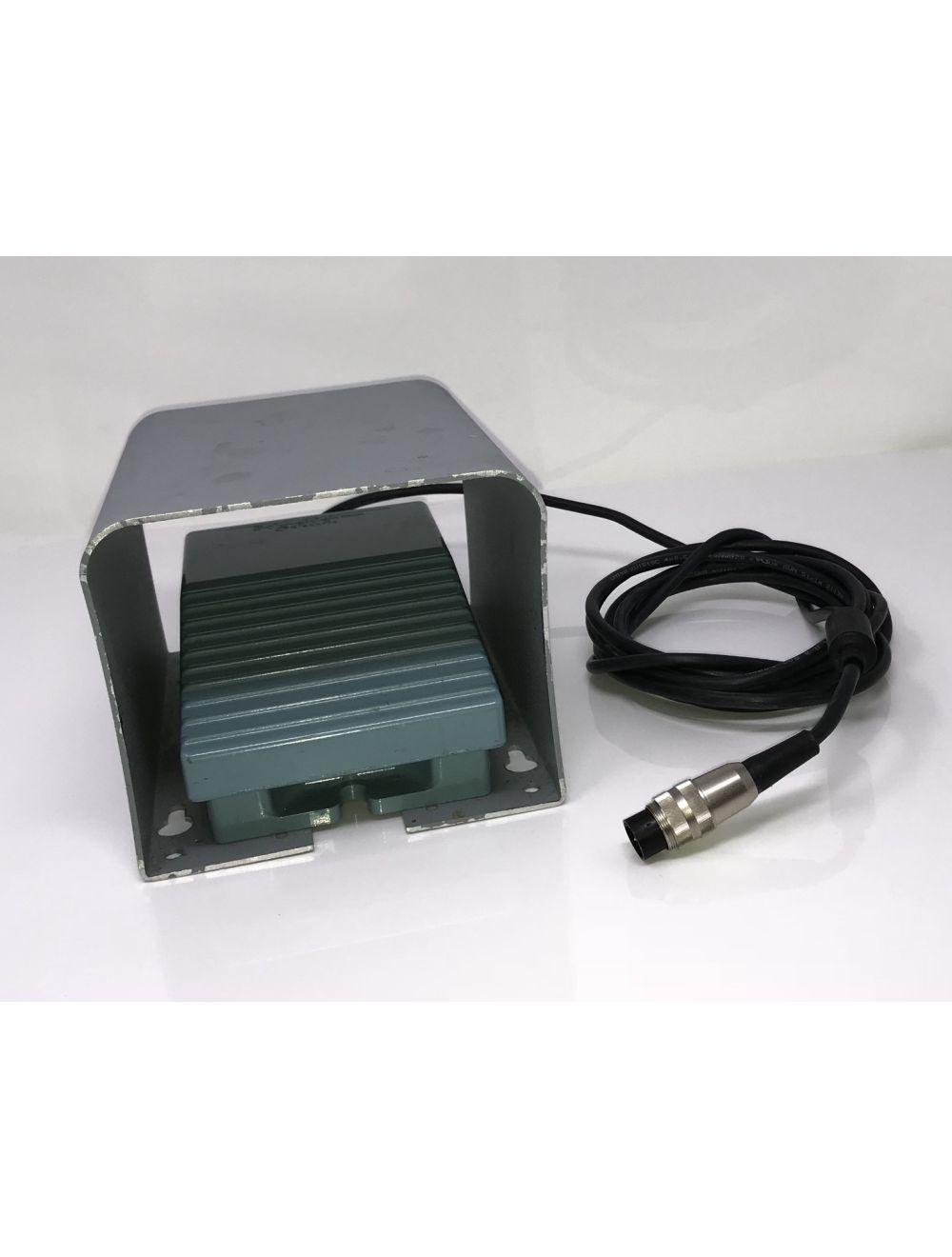

- Foot Switch
- Power Cable
- Key
- Interlock

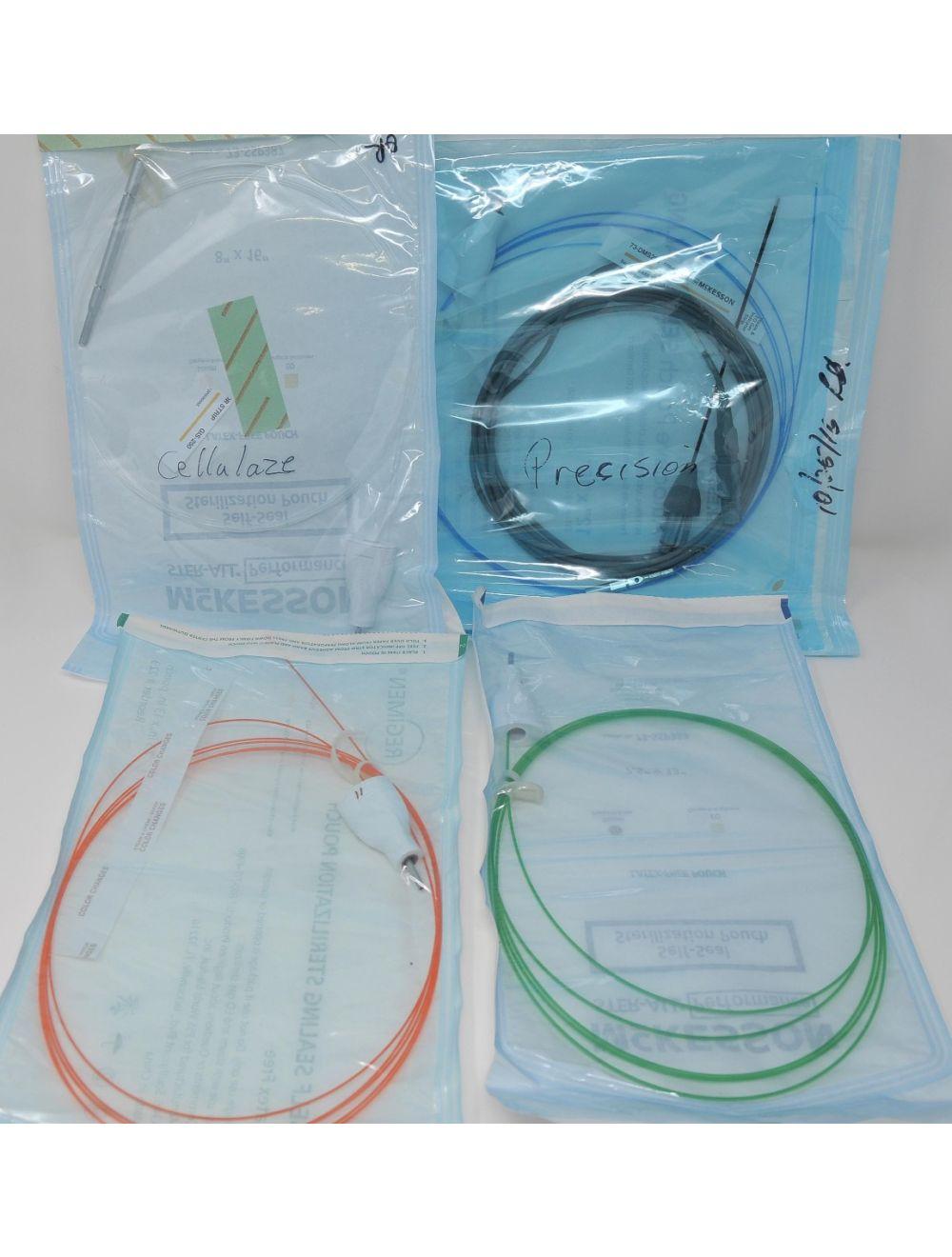

All 4 Colors of Fibers
- Orange - (P/N: 807-5001-613)
- Green - (P/N: 807-5001-619)
- Clear - (P/N: 807-5001-615)
- Blue - (P/N: 807-5001-617)
All ThermaGuides:
SideLaze:
150nm – 800um – P/N: 100-7014-150 – (For Blue SideLaze)
250nm - 1000um – P/N: 100-7014-250 – (For Clear SideLaze)
SmartLipo:
150nm – 600um – P/N: 100-7007-150 – (For Orange Fiber)
250nm – 1000um P/N: 100-7007-350 – (For Green Fiber)

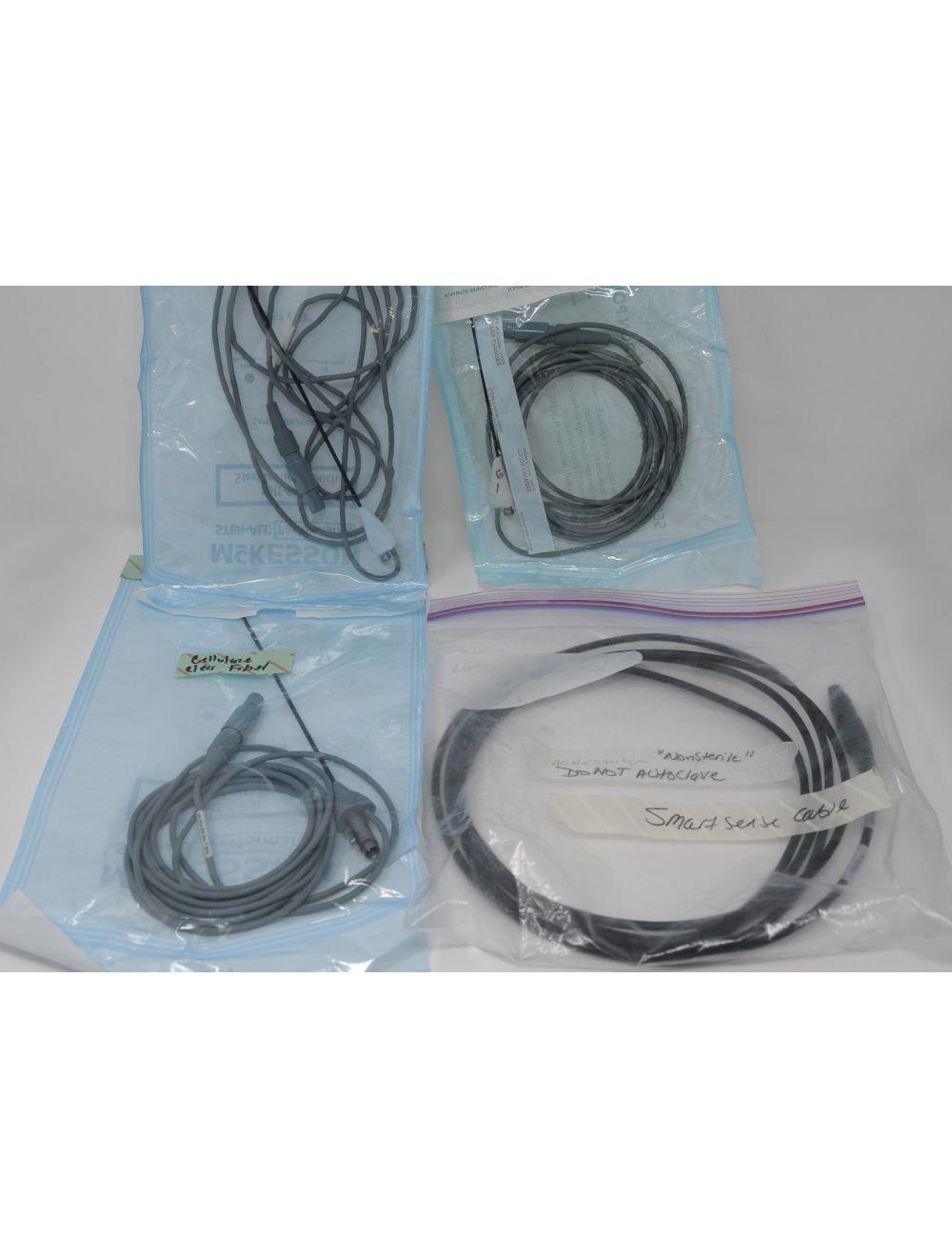

- SmartSensor Cable - P/N: 100-7007-800 (Universal)

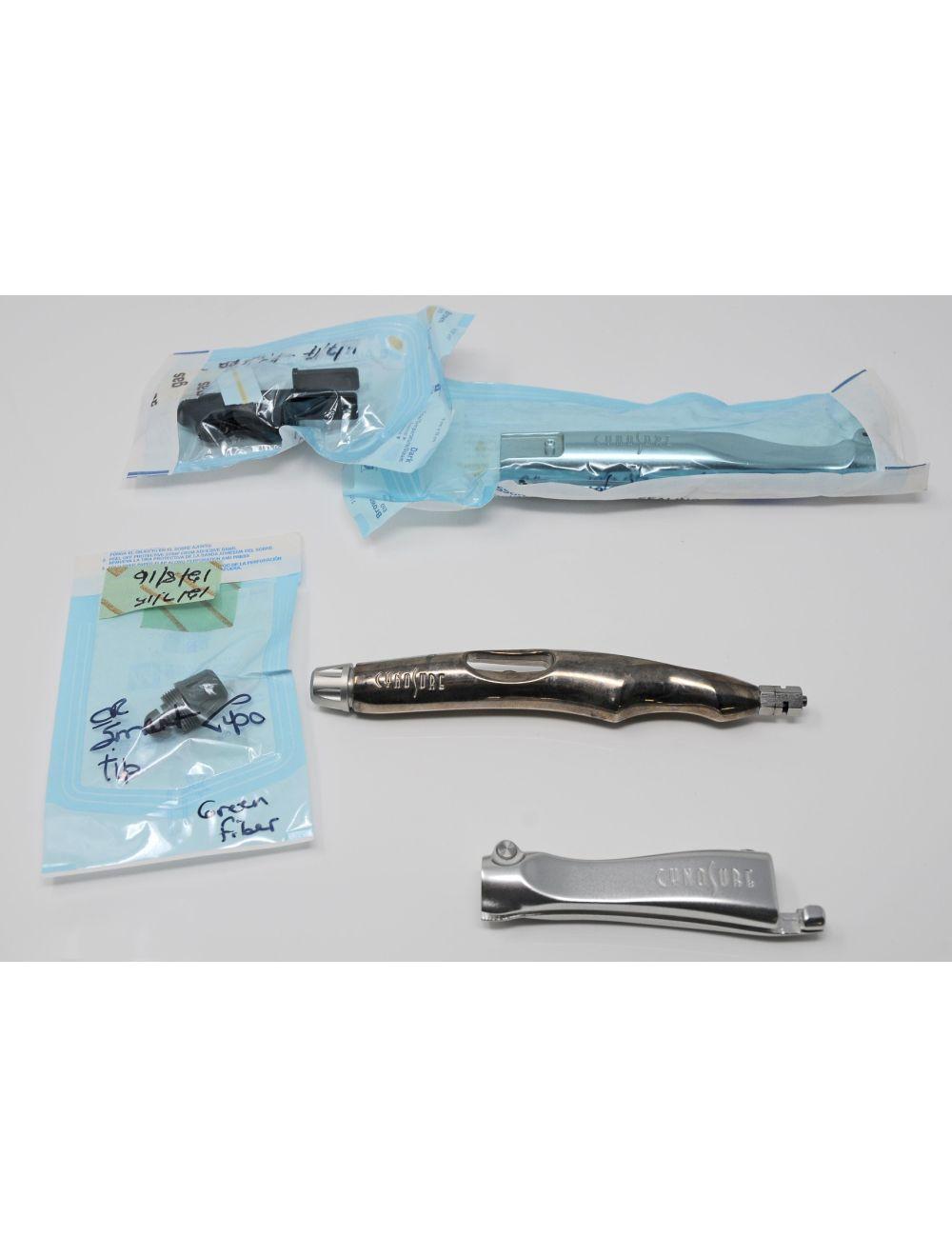

All Handpieces:
- Short Metal (For Blue Fiber)
- Longer Metal - W/Plastic Clip - (For Clear Fiber)
- Long Metal (W/2 different size tips) - (For Orange and Green Fibers)
=====================
POWER REQUIREMENTS
* 220V 30Amp *
=====================
